Modeling Real-World Scenarios Using UML Use Case Diagrams in Sparx EA

Unlocking Clarity in System Design with Use Case Modeling

In the early stages of software design, one of the most critical steps is understanding what the system is supposed to do — from the user’s perspective. This is where UML Use Case Diagrams come into play. They provide a high-level view of user interactions with a system, helping teams translate business needs into functional software behavior.

With Sparx Enterprise Architect (EA), modeling these interactions becomes more than just drawing diagrams — it becomes a powerful way to elicit captured requirements, validate workflows, and drive alignment across stakeholders.

What Is a Use Case Diagram?

A Use Case Diagram is a core component of the Unified Modeling Language (UML). It visually maps out how actors (users or systems) interact with the software to achieve specific business goals (use cases).

These diagrams are especially valuable during the requirements gathering phase, offering a shared view for business analysts, developers, and project stakeholders.

Key Elements:

• Actors: Users or external systems that interact with your application.
• Use Cases: functional goals that the actors aim to accomplish.

Modeling Use Cases in Sparx Enterprise Architect

Sparx Enterprise Architect makes it easy to define, document, and extend use case scenarios into complete system designs. Here’s how EA enhances the use case modeling process:

• Define actors and use cases using drag-and-drop elements from the UML toolbox.
• Document scenarios with EA’s built-in Scenario Editor, capturing basic flows, alternative paths, and exceptions.
• Auto-generate behavior diagrams such as Activity and Sequence diagrams from your scenario steps.
• Link use cases to system requirements, components, and test cases for full traceability.
• Generate documentation directly from the model using customized templates.

Real-World Example: E-commerce System

Let’s consider a simplified e-commerce platform to see use case modeling in action. The system supports four key functional areas:

High-Level Use Cases

• Manage User Account: Interacted with by both Client and Administrator.
• Manage Inventory: Allows administrators to handle stock and catalog updates.
• Process Order: Captures the end-to-end flow of placing and fulfilling orders. Involves both Client and System.
• Provide Online Sales: Connects the Client to product browsing and purchase workflows.

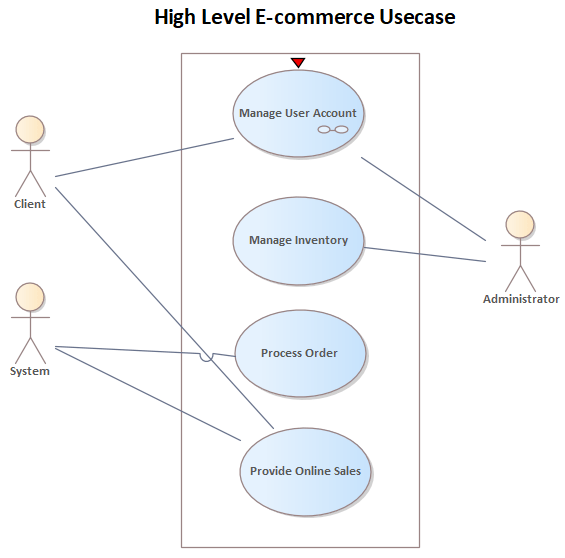

Figure 1: E-Commerce Use Case Diagram in Sparx EA

Each use case can be expanded with scenario details:

• Basic Flow – Standard steps from start to goal.
• Alternative Paths – Variations in user input or choices.
• Exception Paths – What happens when things go wrong (e.g., payment failure).

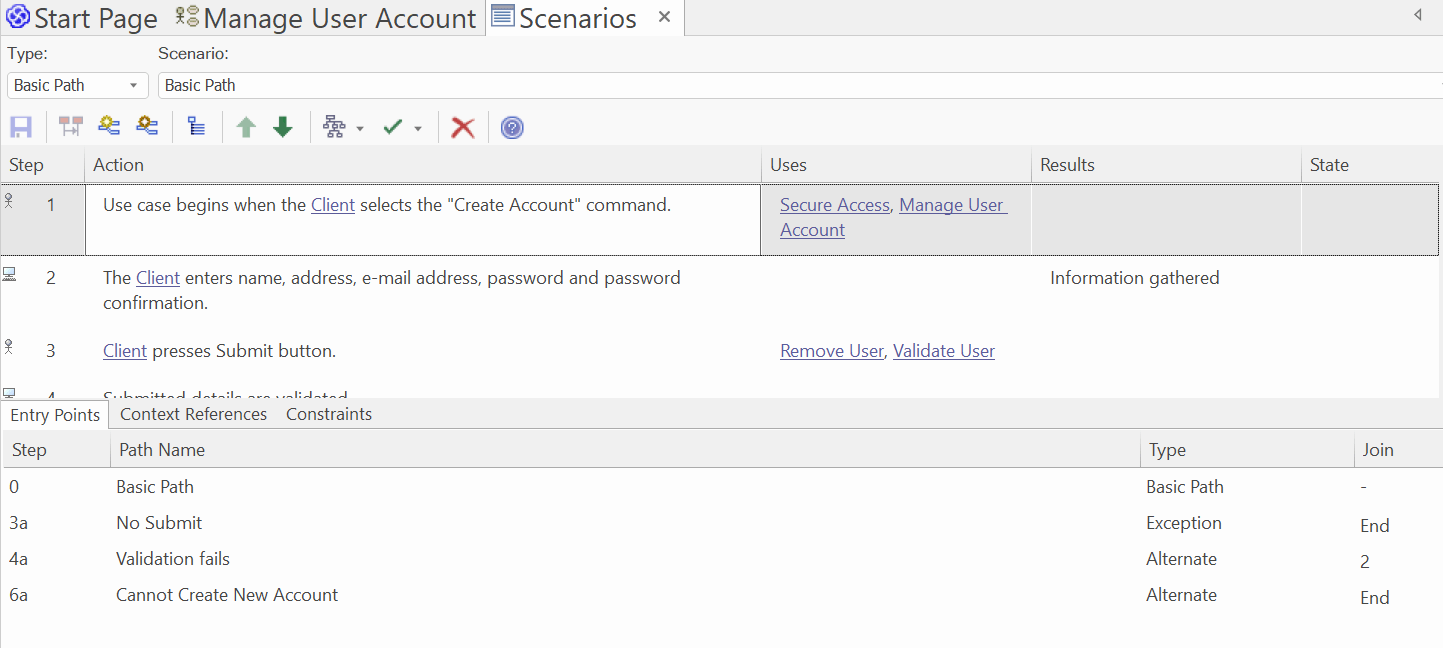

Figure 2: Scenario Editor in Sparx EA

From these scenarios, EA can automatically create Activity Diagrams to visualize the flow or Sequence Diagrams to explore system interactions step-by-step, and Testcases to validate the software functionality.

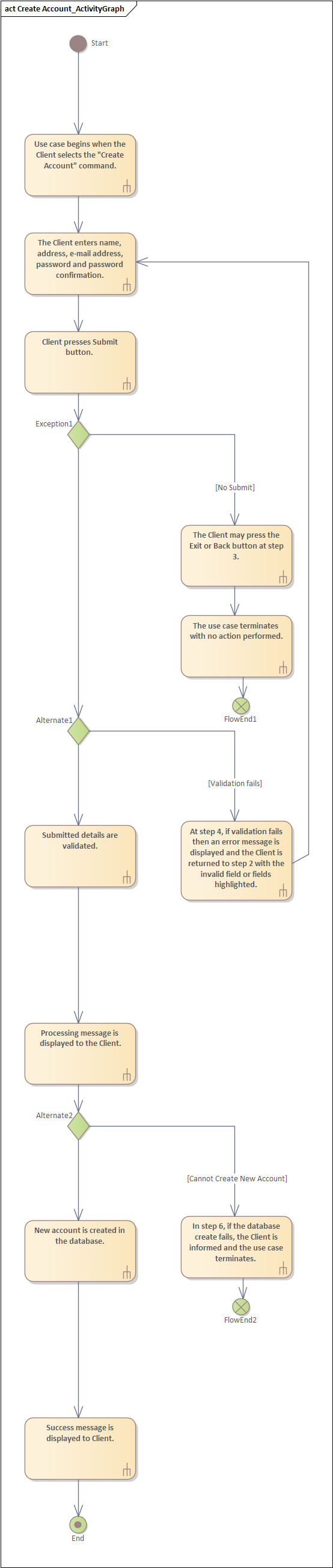

Figure 3: Activity Flow from Scenario Editor in Sparx EA

Why Choose Sparx EA for Use Case Modeling?

Sparx Enterprise Architect brings unmatched depth and flexibility to use case modeling:

• UML 2.x Compliance – Adheres to industry-standard modeling practices.
• Scenario-Based Design – Built-in tools to capture use case steps and variations.
• Requirements Traceability – Seamlessly connect use cases to requirements, design elements, and test plans.
• Auto-Generated Documentation – Publish professional reports with minimal effort.

Conclusion:

Use Case Diagrams in Sparx EA do more than define system functionality — they bring clarity to complexity. By modeling real-world user scenarios, aligning them with business goals, and linking them directly to design and development elements, you build systems that are both functional and future-ready.
